800 Degree 2 Pole has been Discontinued.
Please call our office for alternatives.

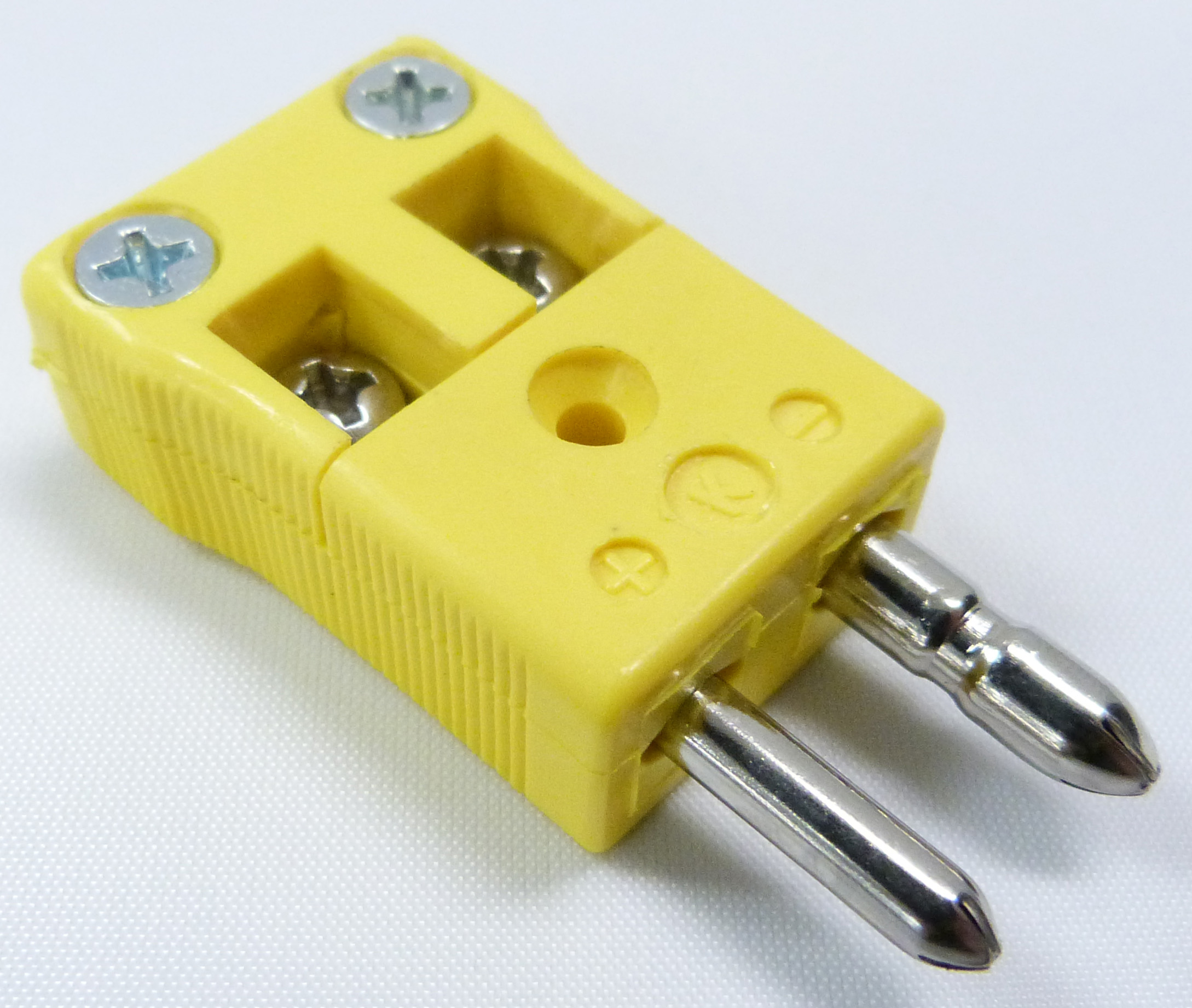

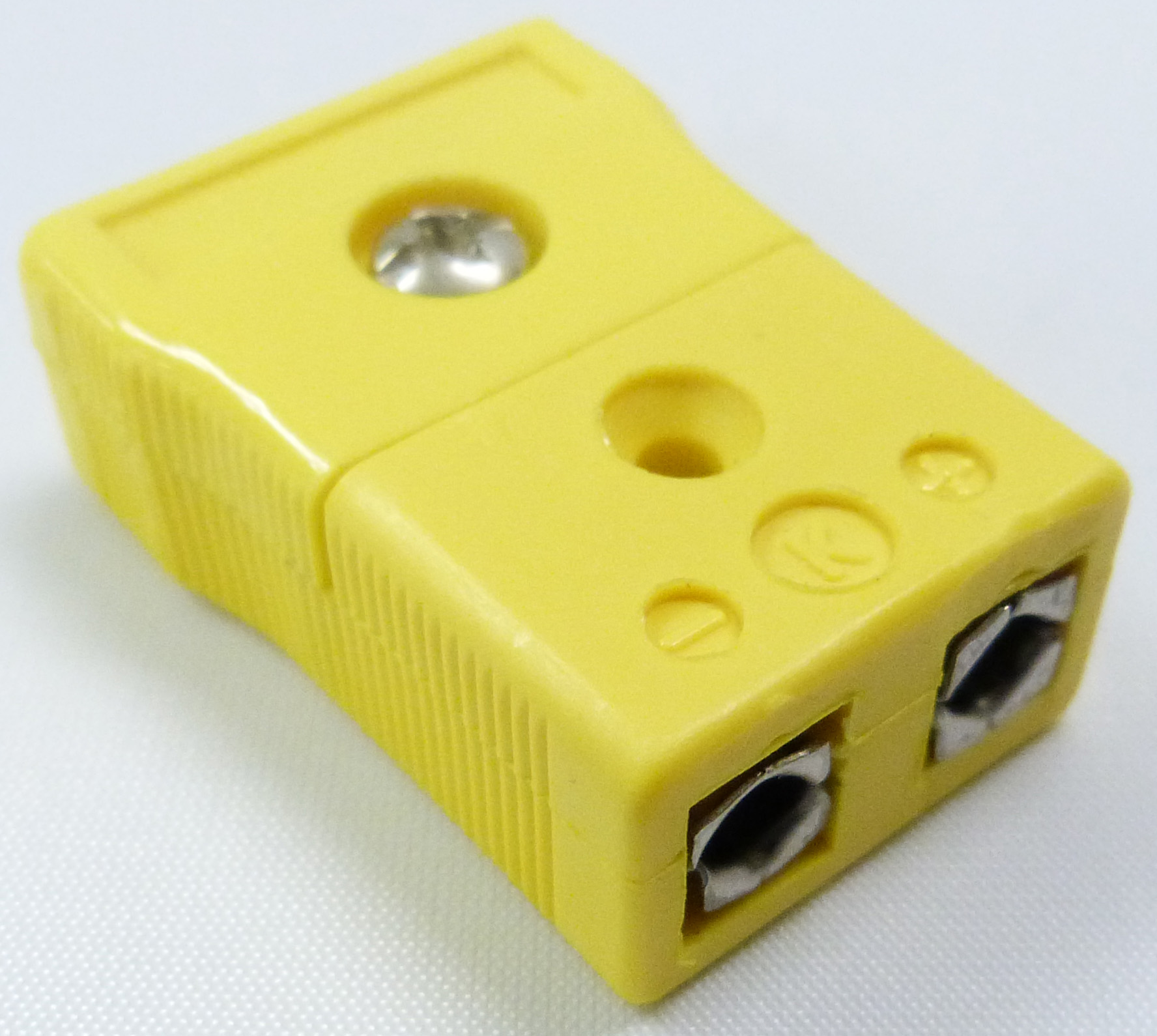

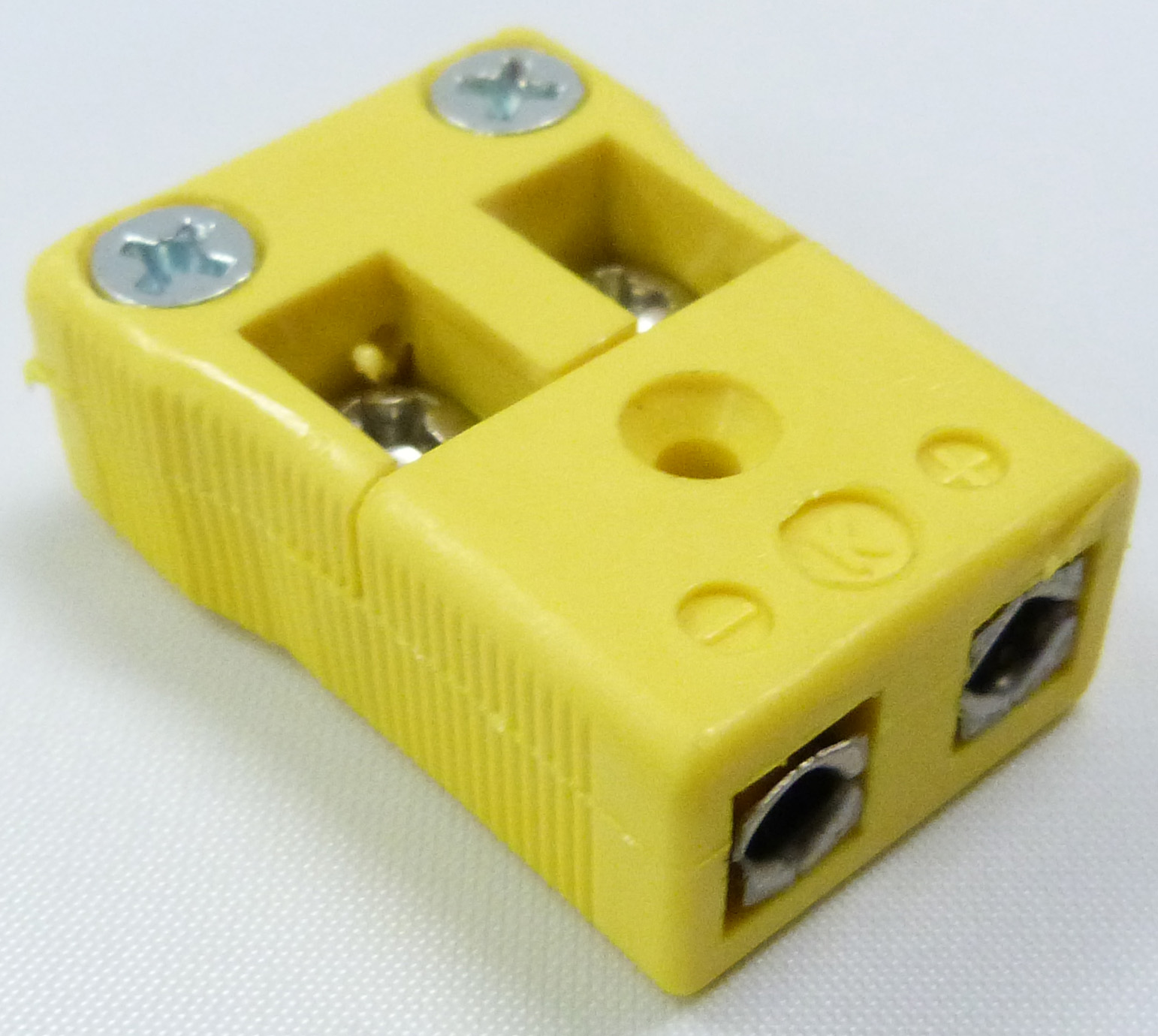

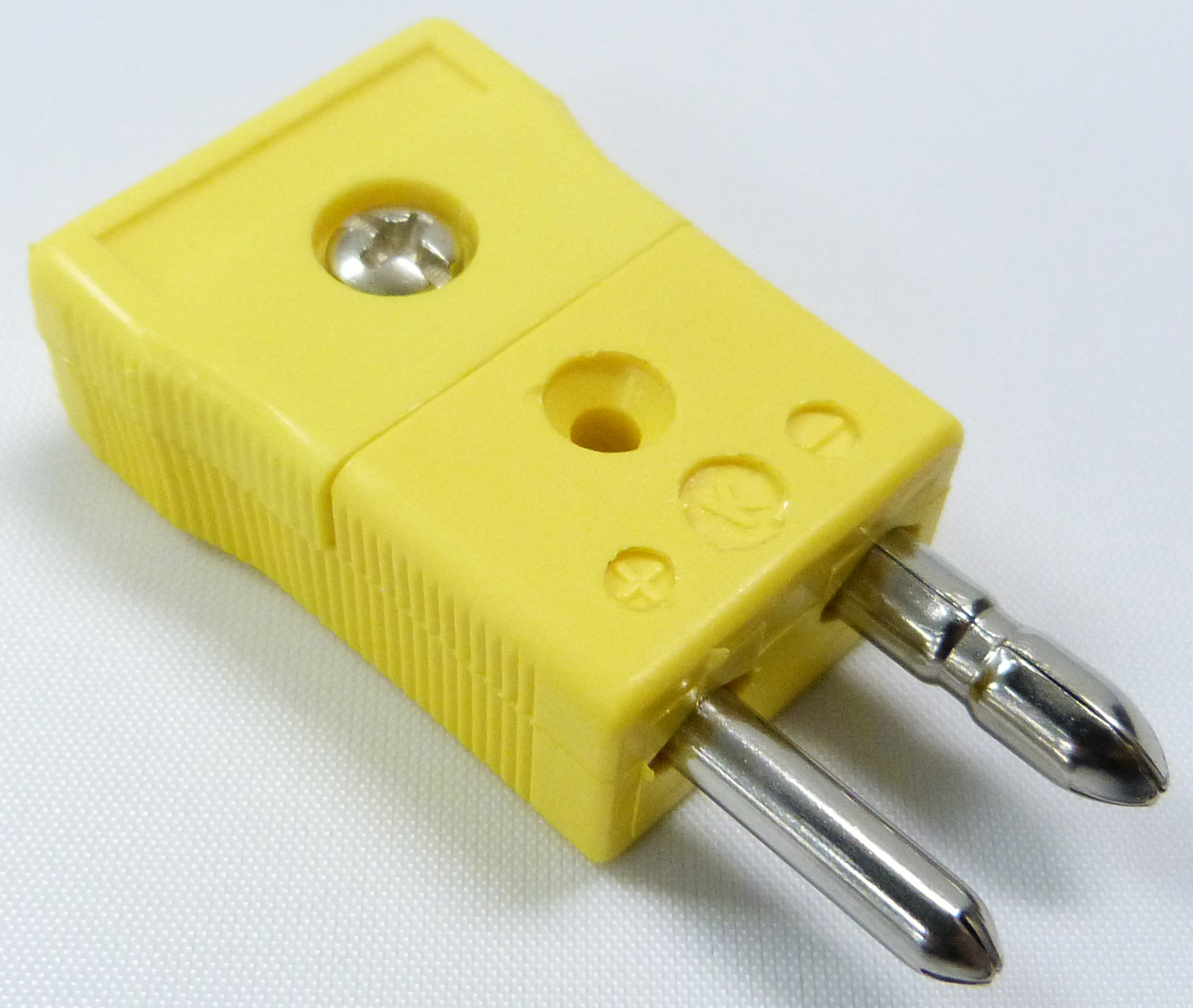

350 Degree 2 Pole

Thermocouple Connector 2 Pole

  • Glass filled thermoplastic body provides high strength at temperatures up to 350°F (176°C) as well as low moisture absorption and good dielectric constant.
  • Heavy duty hollow pin construction prevents reverse mating of polarity.*
  • Body color coded to ISA and ANSI standards.
  • Polarity indicated by symbols molded into body.
  • Contacts made of thermocouple materials which meet ISA and ANSI standards.
  • Jack spring loaded to insure firm grip to plug.
  • Accepts wire sizes to 14 awg.
  • Single screw cover cap for fast assembly.
  • Accepts crimp and tube adapter for product from .020 to .375.
  • Finger grips to permit ease of connection.
  • Quick wiring hook up with large head screws and wire channel.

Catalog
Plugs

Number
Jacks

Thermocouple
Type

Body
Color

Actual Alloy
+In Connector-

LP-J

LJ-J

Iron-Constantan

Black

Iron

Constantan
LP-K LJ-K Chrsomel-Alumel Yellow Chromel Alumel

LP-E

LJ-E

Chromel-Constantan

Violet

Chromel

Constantan

LP-T LJ-T Copper-Constantan Blue   Constantan

LP-R/S

LJ-R/S

Platinum/Rhodiurn­
Platinum

Green

Copper

# 11 Alloy

LP-CU

LJ-CU

Uncompensated

White

Copper

Copper

Solid pin available on above construction. Add S to Part No. i.e. LPS-JI

Jab In Style
Thermocouple Connector 2 Pole

  • Glass filled thermoplastic body provides high strength at temperatures up to 350°F (176°C) as well as low moisture absorption and good dielectric constant.
  • Heavy duty hollow pin construction prevents reverse mating of polarity.**
  • Body color coded to ISA and ANSI standards.
  • Polarity indicated by symbols rnolded into body.
  • Contacts made of thermocouple materials which meet ISA and ANSI standards.
  • Jack spring loaded to insure firm grip to plug.
  • Accepts wire sizes 20 awg to 14 awg. 8 awg available.*
  • Finger grips to permit ease of connection.
  • Quick wiring hook up with large head screws and wire channel

Catalog
Plugs

Number
Jacks
Thermocouple
Type

Body
Color

Actual Alloy
+In Connector-

JILP-J

JILJ-J

Iron-Constantan

Black

Iron

Constantan

JILP-K JILJ-K Chromel-Alumel Yellow Chromel Alumel

JILP-E

JILJ-E

Chromel-Constantan

Violet

Chromel

Constantan

JILP-T JILJ-T Copper-Constantan Blue Copper Constantan

JILP-R/S

JILJ-R/S

Platinum/Rhodium­
Platinum

Green

Copper

#11 Alloy

JILP-CU JILJ-CU Uncompensated White Copper Copper

*Add suffix 8 to catalog number
**Solid pin available on above construction. Add S to Part No. (i.e JILPS-J)
