Hardware & Accessories

Tube Adapter

For installing single metal sheath thermocouple to connector. Mounts to underside of connector for ease of wiring connections. 2 screws provided for easy attachment to thermocouples.

Dual Compression Tube Adapter

For installing dual metal sheath thermocouple to connectors. Permits use of parallel or diagonal sheath wiring. Accepts 2 standard or high temperature connectors.

Weather Proof Jackets

Neoprene rubber jackets add moisture protection to connection. Two per assembly.

Brass Insert

Used to crimp or braze sheath type thermocouple for installation into connector cavity. Fits sheath sizes up to VC. Attaches directly to sheath by crimping or brazing.

Wire Clamp Bracket

Rugged bracket for strain relieving insulated wires. Easily installed after wires are attached to connector.

Rubber Bushing

Installed into insert indentation of connector. Provides strain relief for thermocouple wire.

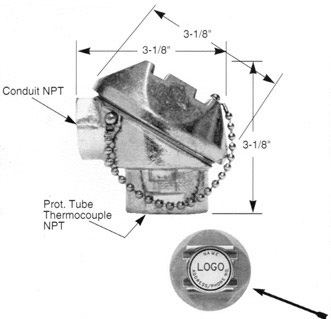

Connection Head - Standard

Compact. two-piece, screw cover, weather tight housing with gasket, for terminal connections. Designed to simplify replacement of thermocouple elements. Available in aluminum or cast iron.

  • Recommended for use with terminal blocks listed below.

Ordering Code

Aluminum Cast Iron Protection Tube Conn. Conduit Outlet

A-1
A-2
A-3

CI-1
CI-2
CI-3

1/2 in. NPT
3/4 in. NPT
1 in. NPT

1/2 in. NPT

A-4
A-5
A-6

CI-4
CI-5
01-6

1/2 in. NPT
3/4 in. NPT
1 in. NPT

3/4 in. NPT

Nameplate, add suffix logo to above part no. Consult factory for additional details.

Connection Head - Large

Large, sturdy, two-piece, screw cover, weather tight housing with gasket, for mounting terminal blocks and/or small transmitters. Available in cast iron.

  • Accommodates single screw block mounting.

Ordering Code

Cast Iron Protection Tube Conn. Conduit Outlet

LCI-1
LCI-2
LCI-3

1/2 in. NPT
3/4 in. NPT
1 in. NPT

1/2 in. NPT

LCI-4
LCI-5
LCI-6

1/2 in. NPT
3/4 in. NPT
1 in. NPT

3/4 in. NPT

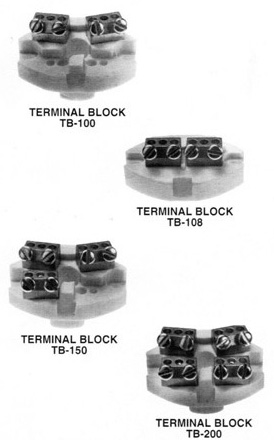

Terminal Blocks

Heat resistant porcelain base with solid brass terminal blocks. All blocks designed to utilize either two screw securing or a sloped front ramp for connection heads with one set-screw securing. Center hole in three styles for spring loading. TB-108 is ideal for 8 awg beaded thermocouples.

  • Recommended for use with connection heads listed above.

Ordering Code

Description

TB-100
TB-108
TB-150
TB-200
TB-300

Single Terminal Block - Two Terminals
Single Terminal Block - For 8 awg -2 Terminals
Single Terminal Block - Three Terminals
Duplex Terminal Block - Four Terminals
Triplex Terminal Block - Six Terminals (not shown)

Warranty

Marlin Thermocouple Wire (“Seller”) warrants that any product provided by Seller shall be free from defects in material or workmanship from a twelve month period from the date of shipment. Seller shall replace any products it has provided which fail to meet the applicable warranty as set forth.
